Description
This small size Bluetooth 4.0 TTL transceiver module allows your target device communicate with your iPhone/iPADAndroid 4.3 above devices. It’s easy to use and completely encapsulated. You can set it as slave or master. You can use AT command set the baudrate.

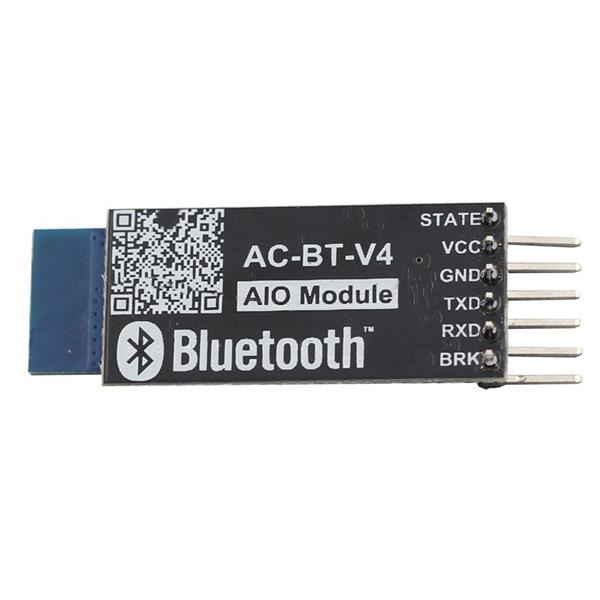

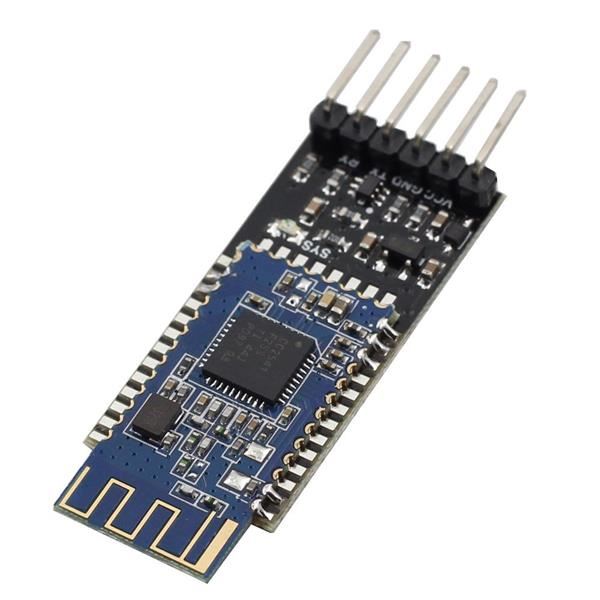

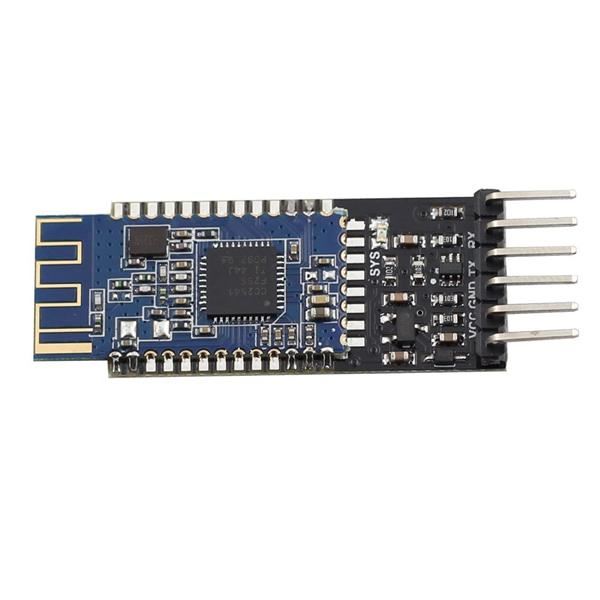

PIN define:
- STATE -You can connect a external LED to indicate the bluetooth state. It same as the state LED on the module.
- RXD -Receive data
- TXD -Send data
- GND -Power ground
- VCC -DC power in (3.3V-6VDC)
- KEY -Turn on/off this module by this pin.(1- OFF0/Open- ON)
Features:
- TTL data transparent transfer between a host Bluetooth device(IOS or Android 4.3).
- Ultra-low standby power consumption 400uA ~ 800uA
- Default Baud Rate: 960081n.
- Coverage up to 60 meters
- Built in antenna
- Power input: 3.6V-6VDC(Can not higher than 6V)
